Strata Large Dinse Connectors

(1)
Free shipping on orders over $50
Strata /
SKU: CP3550

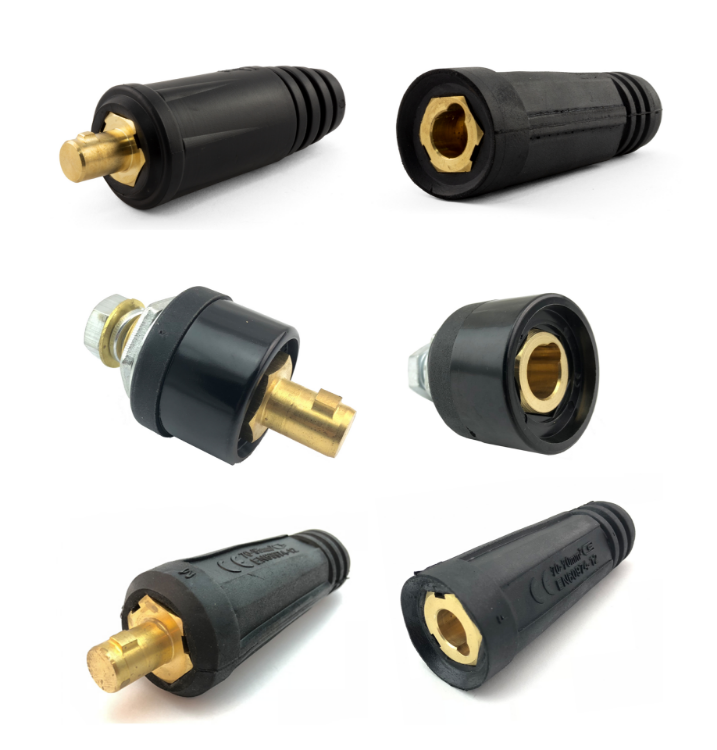

Available as a Cable Plug, Cable Socket, Panel Plug & Panel Socket. The large size (12.7mm pin) is best suited for 35-95mm² welding cable. Dinse connectors are also known as Tex or Texas connectors.

This product is not in stock but is available to order from the supplier.

Please submit an enquiry and our team will confirm availability and pricing.

*
$ 9 .00 Excl GST
$ 10.35 Incl GST

or 4 interest-free payments of $3 with

afterpay-icon afterpay-icon
Overview

Product Overview

Strata Large Dinse Connectors

Key Features

  • Twist-Lock type connectors
  • Pin size of plug is 12.7mm (1/2")
  • Suitable for up to 500 Amps

Purchasing Options

Product SKUProduct NameOther Product NamesUseful Information

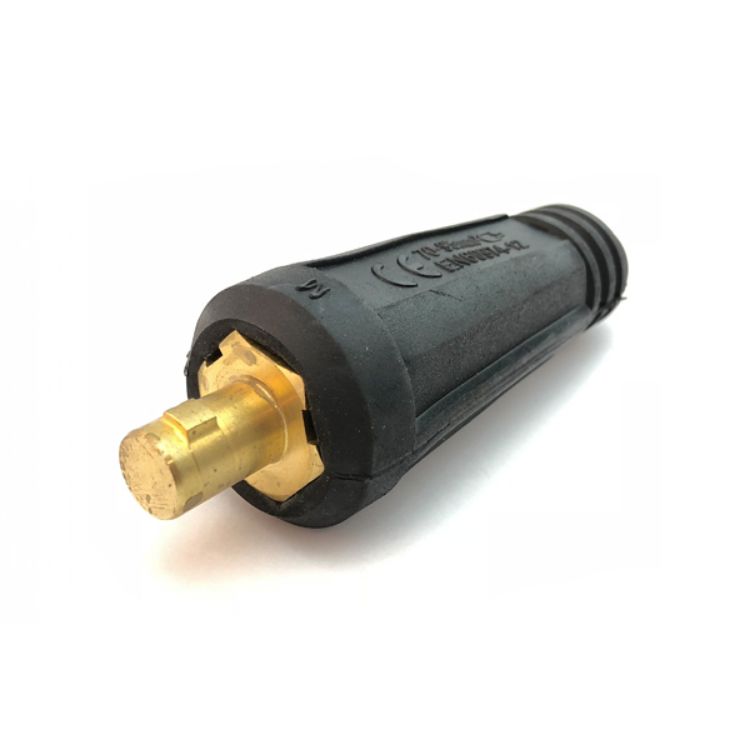

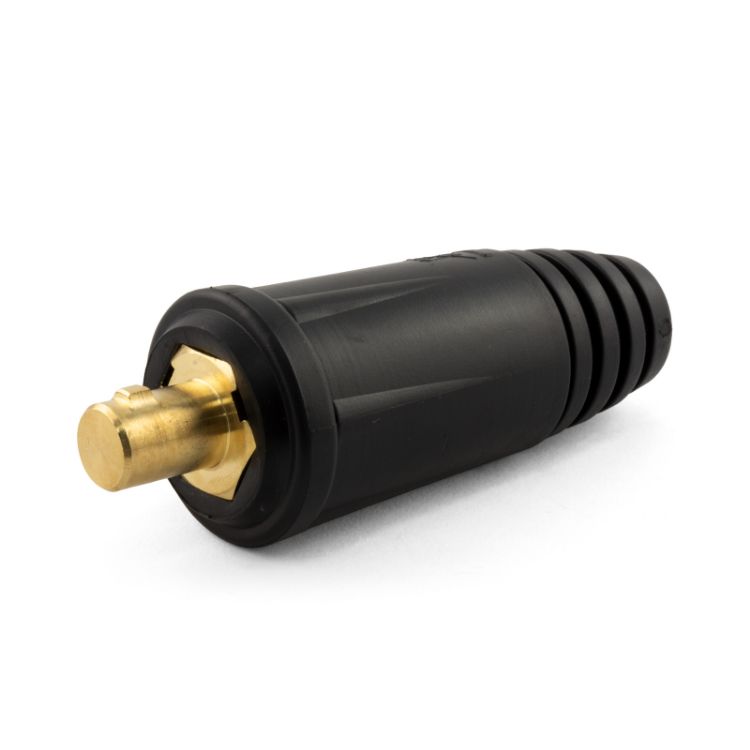

CP3550CP3550 Cable PlugDinse Plug / Tex PlugBest suited to 35-50mm² Cable*

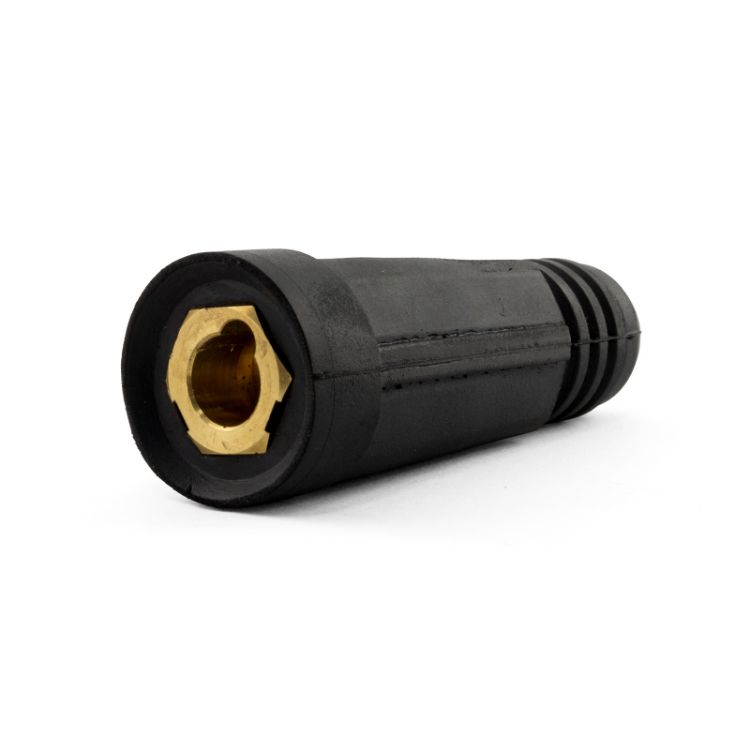

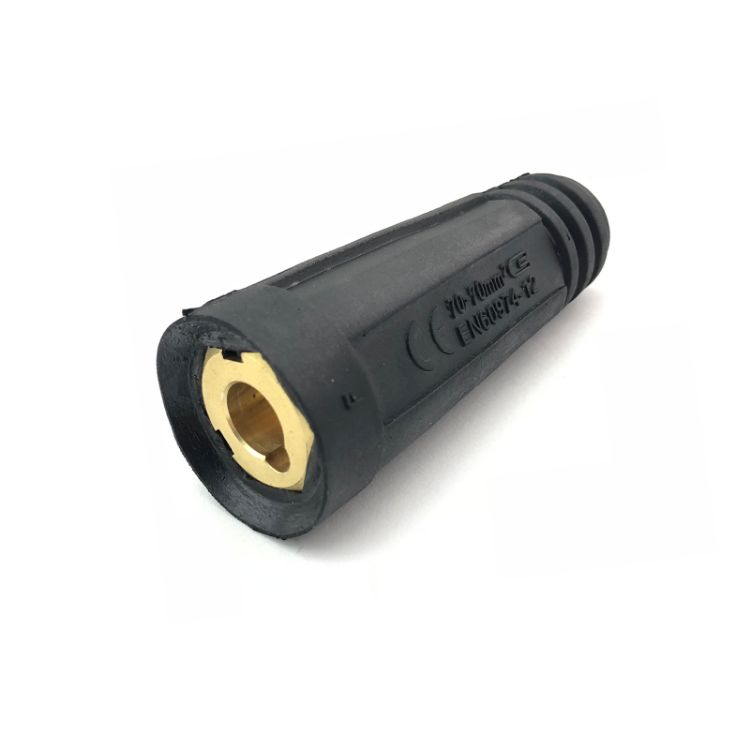

CS3550 CS3550 Cable SocketDinse Socket/ Tex SocketBest suited to 35-50mm² Cable*

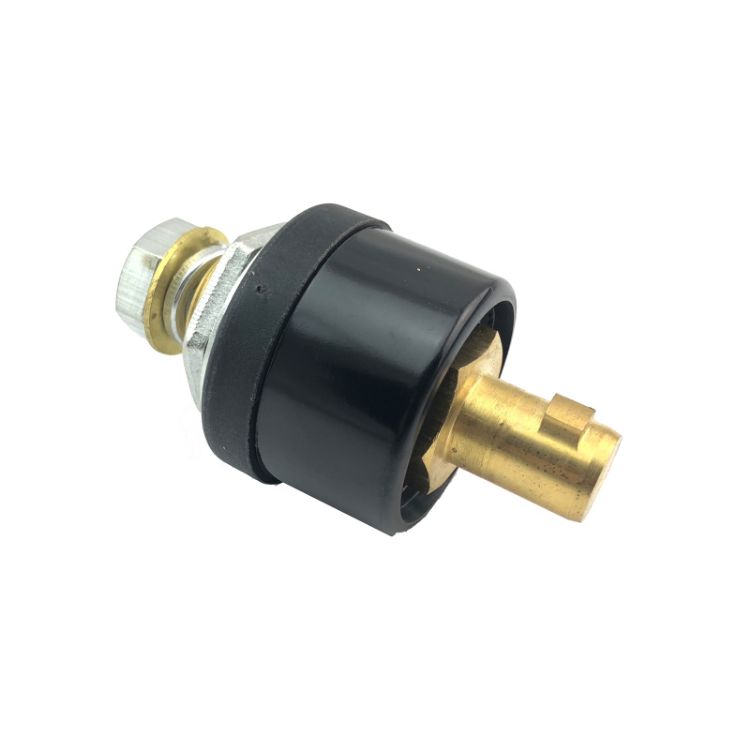

204840 PP3550 Panel Plug M10 bolt at rear. 12.7mm pin plug at front

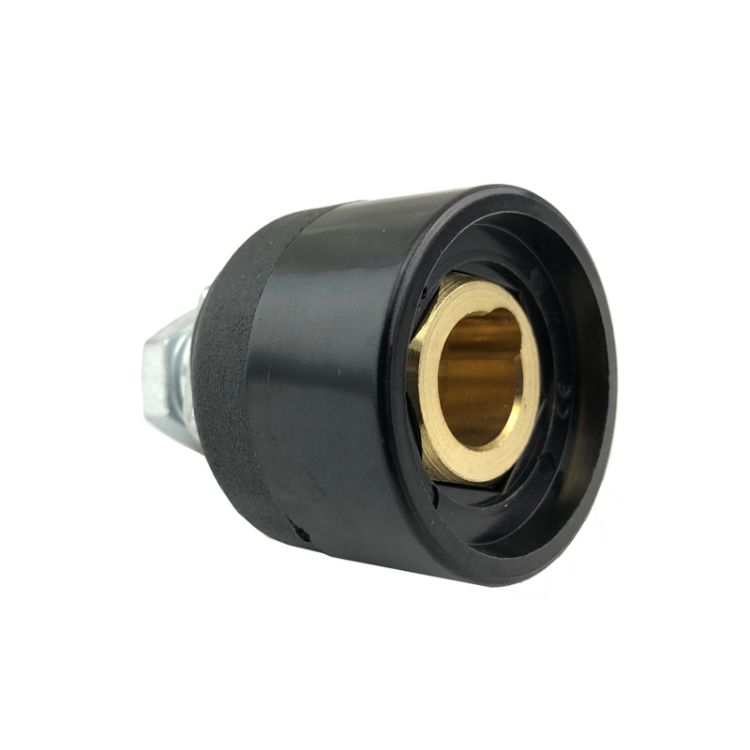

PW3550PS3550 Panel Socket M10 bolt at rear. 12.7mm socket at front
202024CP7095 Cable PlugDinse Plug / Tex PlugBest suited to 70-95mm² Cable*
202025CS7095 Cable SocketDinse Socket/ Tex SocketBest suited to 70-95mm² Cable*

*Smaller/Larger cables can be used. When using smaller cable, we recommend doubling over the conductor to ensure cable is secured adequately, ensuring excellent electrical conductivity.

Also known as:
Male: CP3550, CP5070, CP7095, PP3550, LE20801, LE20602, LE20601, 7090, 704461, 705155
Female: CS3550, CS5070, CS7095, PS3550, LE20602F, 704460, 705154

Resources

Downloads

Your Questions Answered

FAQ's

What our customers think

Customer Reviews

5 / 1 review(s)
5 star
100 %
4 star
0 %
3 star
0 %
2 star
0 %
1 star
0 %
WRITE A REVIEW
See All Reviews
Large Dinse Connectors
These look better than the original ones on my wia 175 but they are the next size up so I had to drill the hole out to fit
Lucas Sciascia
